Z22

Tool Box for Trucks

Z22

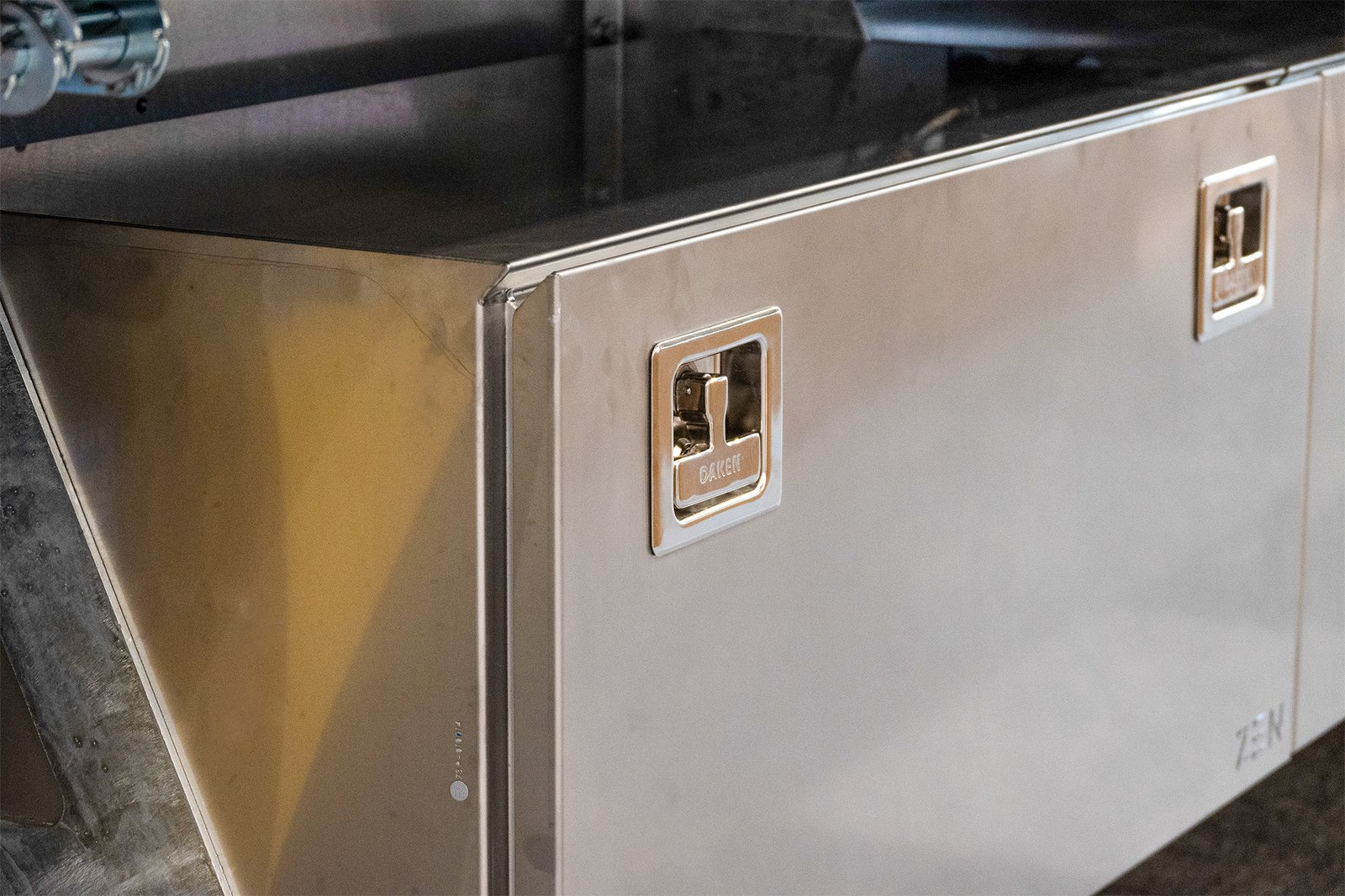

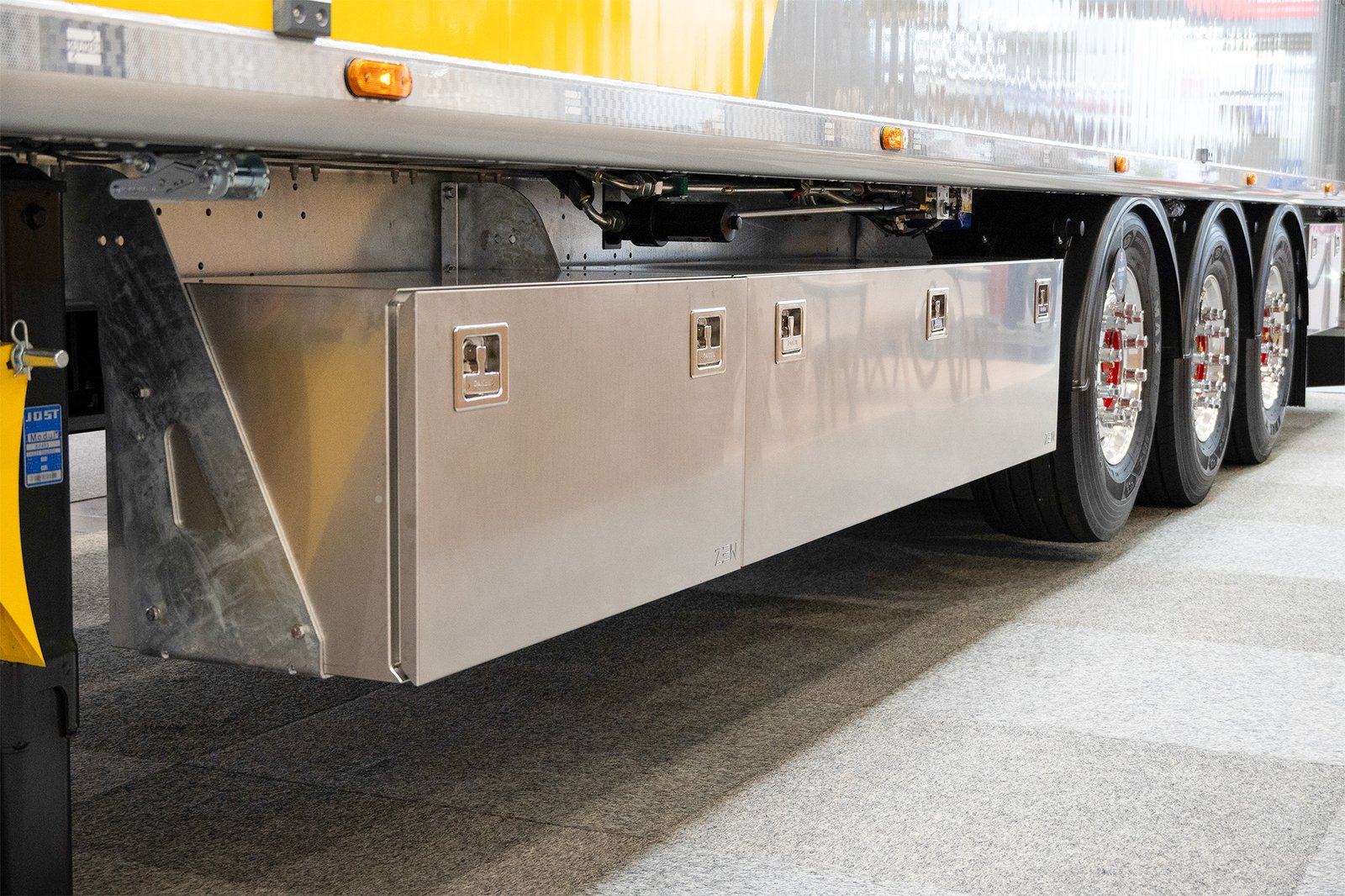

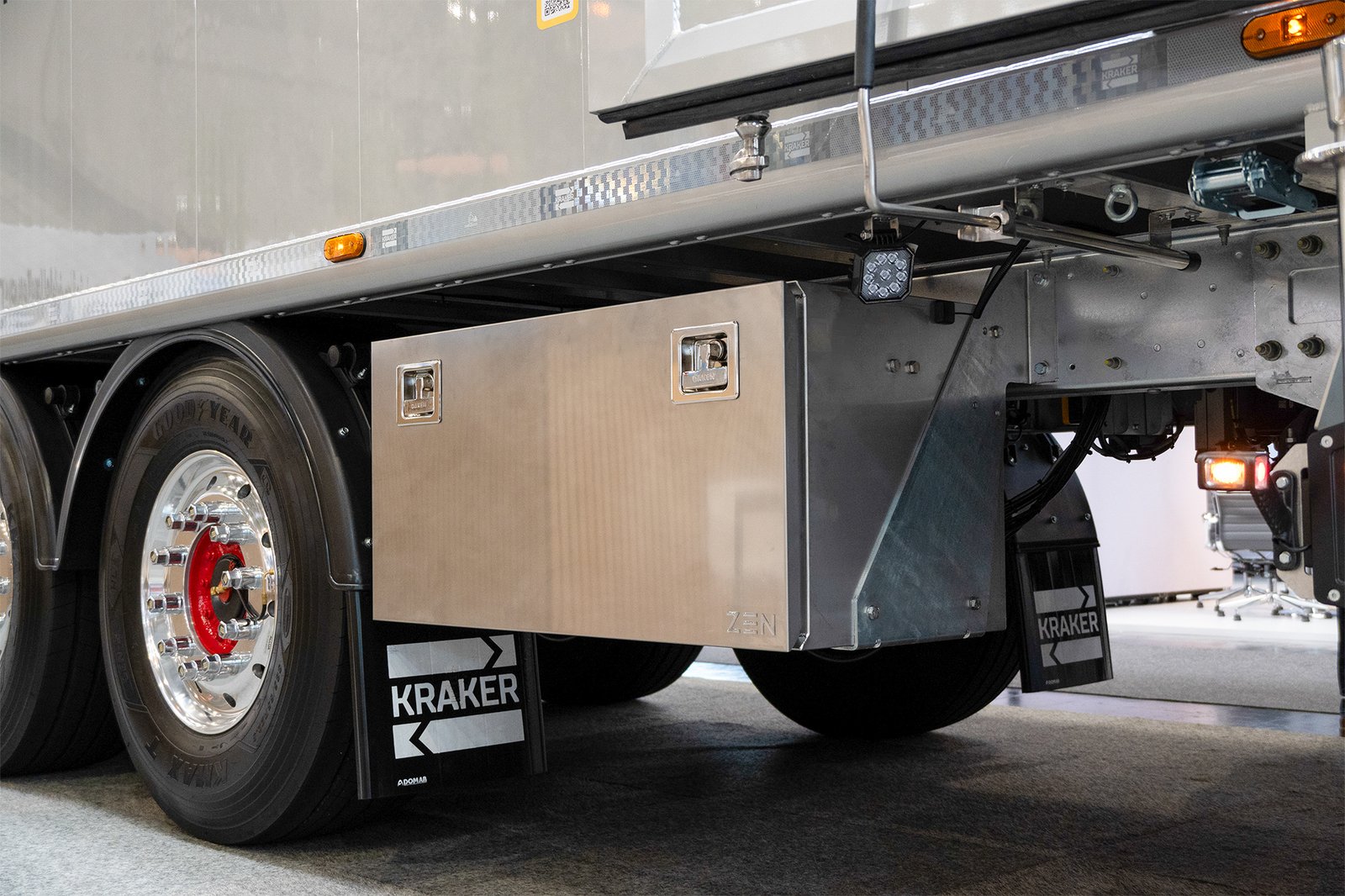

Matte stainless steel tool box with NexT handle for trucks, trailers, and semi-trailers

Daken tool box in matte stainless steel, equipped with a NexT stainless steel handle.

Practicality and elegance on board.

Product Features

  • Manufacturing process: laser cutting, bending, laser/TIG welding
  • Finish: AISI 304 2B matte stainless steel
  • Thickness: 1.5 mm – 1.2 mm
  • Closure: NexT handle in matte AISI 304 stainless steel
  • Zipper material: nylon
  • High resistance to shock and vibration
  • Water and Dust Resistance Rating: IP5K9K
  • Vibration testing in accordance with military standards, equivalent to 1,000,000 km under full load
  • Manufactured in accordance with IATF standards



The entire Daken ZEN stainless steel line is highly customizable in terms of dimensions, thicknesses, and finishes, with the option to create Special Projects!

Features

VIBRATION RESISTANCE

WATER AND DUST RESISTANCE

IMPACT RESISTANCE

Product Test

Approvals
Certifications

Models and sizes. Find the size that's right for you.

Maniglia NexT | disegno tecnico
Code LxHxD external dim. (mm) Thickness (mm) Weight (kg) Handles N° Capacity (L)
8Z2200 400x300x300 1,5 8,9 1 32
8Z2201 400x600x600 1,5 21,9 1 129
8Z2202 450x450x450 1,5 16,4 1 82
8Z2203 490x450x450 1,5 17,8 1 89

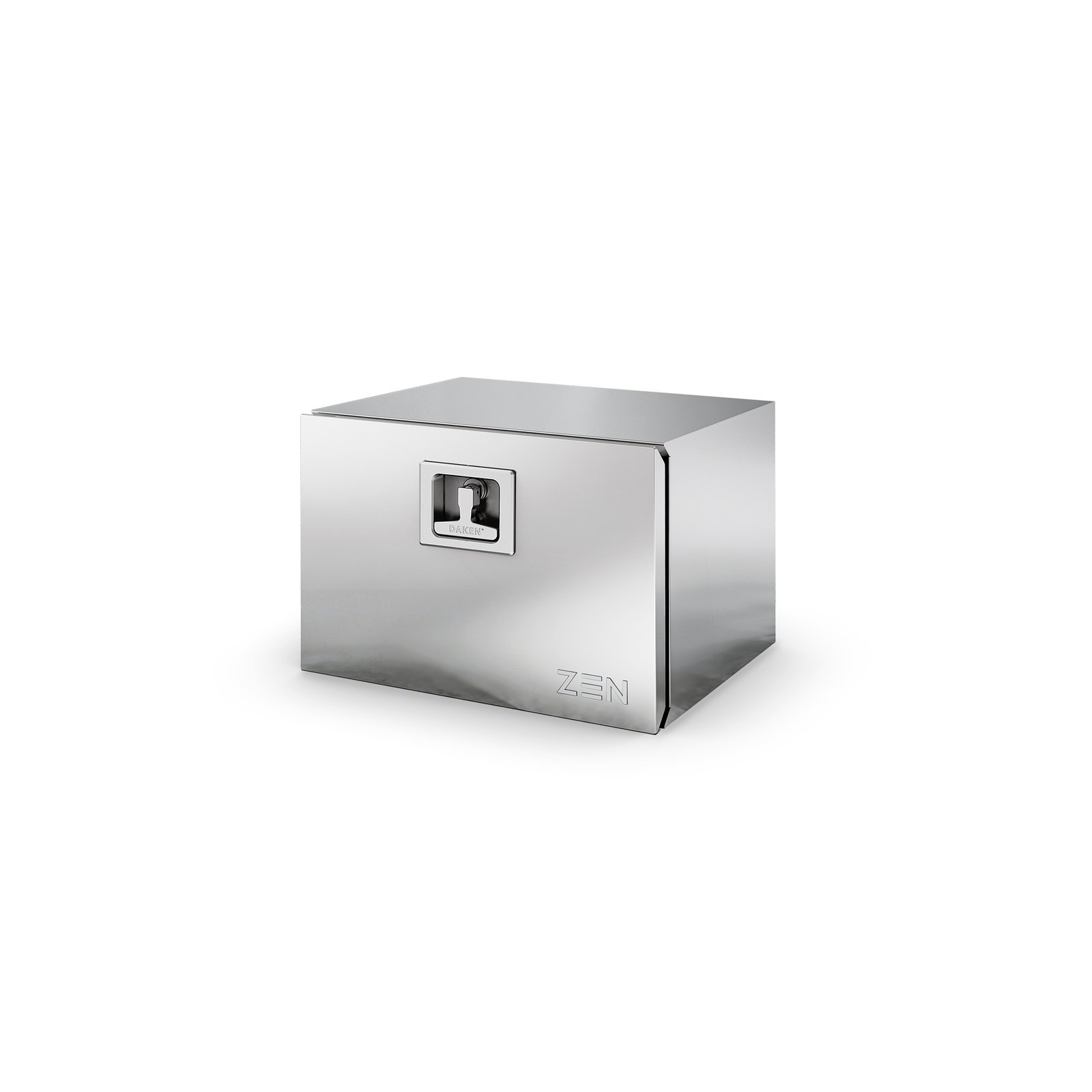

8Z2210 500x350x400 1,5 14,6 1 63
8Z2211 500x600x600 1,5 24,9 1 162
8Z2220 600x400x500 1,5 22,3 1 108
8Z2221 600x600x600 1,5 27,9 1 194
8Z2222 600x500x500 1,5 24,0 1 140

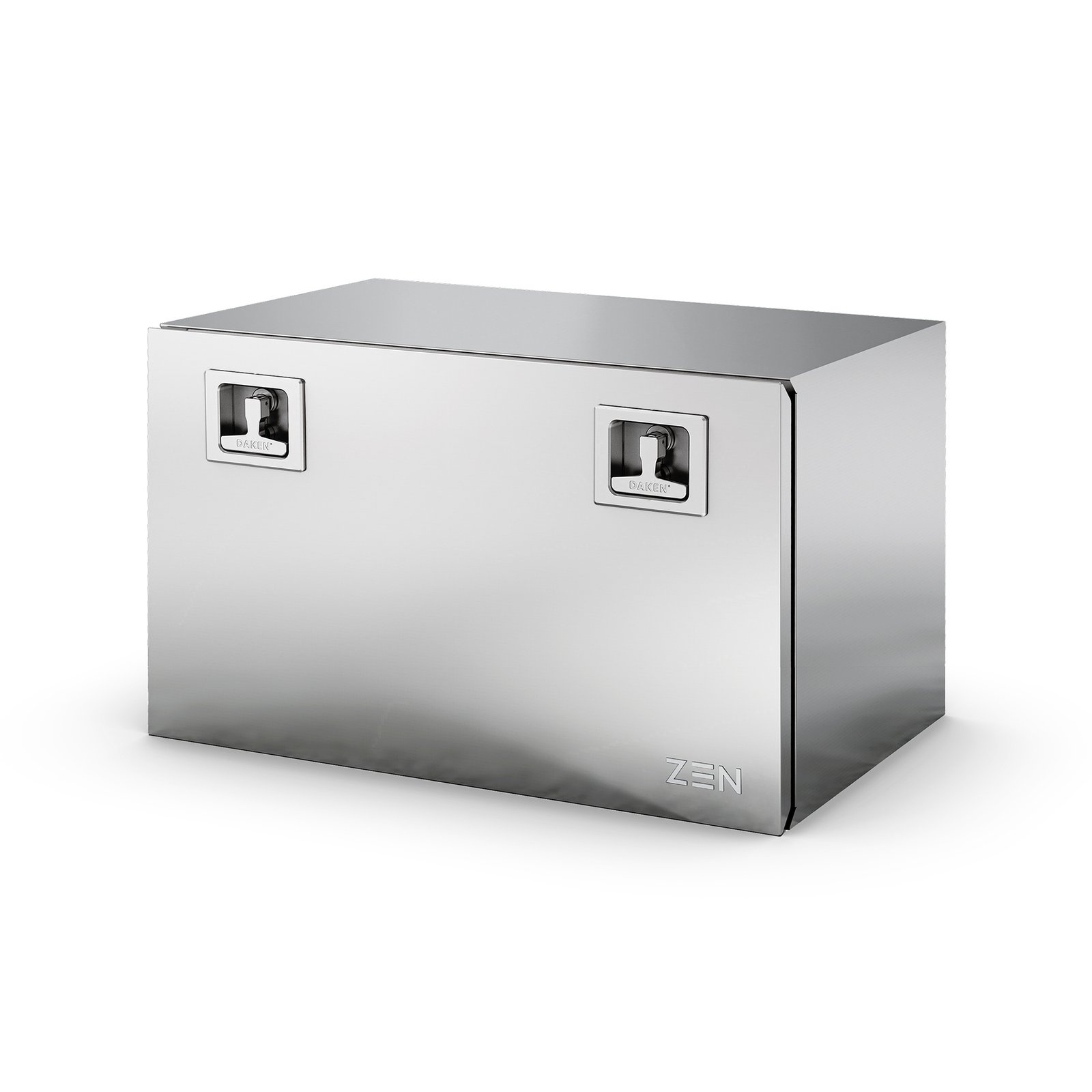

8Z2240 800x500x500 1,5 28,1 2 180
8Z2241 800x500x600 1,5 28,3 2 216
8Z2242 800x600x500 1,5 31,4 2 216
8Z2243 800x600x600 1,5 34,6 2 259
8Z2260 1000x500x500 1,5 33,4 2 225
8Z2261 1000x500x600 1,5 36,5 2 270
8Z2262 1000x600x500 1,5 36,8 2 270
8Z2263 1000x600x600 1,5 40,6 2 324
8Z2280 1200x500x500 1,5 38,6 2 270
8Z2281 1200x600x600 1,5 46,8 2 388
8Z2290 1450x500x500 1,5 45,1 2 326
8Z2291 1450x600x600 1,5 54,5 2 469
8Z2300 400x300x300 1,2 7,1 1 32
8Z2310 500x350x400 1,2 11,7 1 63
8Z2320 600x400x500 1,2 17,8 1 108
8Z2340 800x500x500 1,2 22,5 2 180
8Z2340 1000x500x500 1,2 26,7 2 225

Mounting brackets.
Designed and manufactured in Daken.

888211-888212

HORIZONTAL "U" BRACKETS, L >, 750 mm

Hot-dip galvanized steel brackets

888201-888202

HORIZONTAL "U" BRACKETS, L >, 750 mm

Black powder-coated steel brackets

888210

HORIZONTAL "U" BRACKETS, L >, 750 mm

Hot-dip galvanized steel brackets

888200

HORIZONTAL "U" BRACKETS L ≤ 750 mm

Black powder-coated steel brackets

Optionals.
Customize your product.

Media section.
Let us tell you about our products.

FAQ.
Do you have any questions? Let's start by giving you some answers

We can manufacture custom steel and aluminum boxes tailored to specific requirements regarding space, use, and application. In addition, we develop customized designs in collaboration with the customer, defining the dimensions, thicknesses, finishes, and technical specifications best suited to the vehicle or professional use.

Tell us about your needs by filling out the contact form; our team will work with you to design the best solution.

In the meantime, check this out! https://dakenita.staginghosting.com/progetti-custom-zen/

The choice depends on several key factors.

  1. Available space in the vehicle: Measure the area available for installation precisely (length, height, and depth).
  2. Capacity and intended use: Consider the tools and materials you use on a daily basis. If you have high-capacity needs, it’s best to opt for models with greater capacity or modular solutions!
  3. Materials and working conditions: Consider the type of material, keeping in mind that plastic crates are ideal for their light weight and corrosion resistance, while steel or aluminum crates are suitable for harsh environments and intensive professional use, in addition to being highly customizable.

We invite you to fill out the contact form to receive personalized advice and find the solution that best suits your needs!

Yes, welding processes are managed in accordance with the requirements of the UNI EN ISO 3834 standard, which defines quality standards for the welding of metallic materials and the control of the production process.

This standard ensures that production is carried out using controlled procedures, qualified personnel, and quality control systems throughout the entire production cycle.

To request information and product documentation, please submit a request using the form on the product pages. We’ll contact you shortly to provide you with everything you need!

Contact your Daken representative or submit a request through our website at www.daken.it—we’ll get back to you with all the information you need!
